Lub ntsiab
Lub nruas teb cov vijtsam yog cov khoom siv kho tau zoo uas ua tiav cov kua-kua sib cais los ntawm kev sib hloov. Nws cov tub ntxhais muaj ntawm cov cylindrical steel hlau screen, ib tug modular conveying tivthaiv, thiab ib qho kev tawm suab sib dhos. Nws daim ntawv thov cov khoom siv npog hauv nroog dej phwj, kev ua noj ua haus dej khib nyiab, kev ua noj ua haus dej khib nyiab, papermaking dej nplua, thiab lwm yam xwm txheej. Nws yog qhov haum rau kho cov kua nyuaj uas muaj cov fibers luv luv, scum, thiab cov nqi qeeb qeeb.
Nta
Kev Kho Mob High
Lub cav sib cav ua kom muaj kev sib cais dua ntawm cov nyom " Nyob rau tib lub sijhawm, cov khoom plig sab hauv thawb lub dej ntws los ua ib qho vortex kom yaug cov txiaj ntsig qis qis. Cov cuab yeej ib zaug rau cov txheej txheem 50-300 m³ / h thiab ib tus nqi tsis raug tshem tawm ntawm ntau dua los yog sib npaug rau 80%.
Yooj yim tswj
Cov cuab yeej txais kev txhim kho cov qauv cantilever tsis muaj cov kabmob sib npaug ntawm kev hloov kho nrawm, thiab ib tus neeg tuaj yeem ua tiav kev hloov vijtsam tsis pub dhau 10 feeb. Cov ntsiab lus tseem ceeb Siv cov qauv sib txuam, thiab lub sijhawm ua txhaum yog luv los ntawm 70%. Tus saib xyuas tus nqi ntawm lub nruas teb tau txog 40% qis dua li cov khoom siv hauv ib txwm muaj.
Precise Cais
Qhov chaw ntawm lub vijtsam admed ib qho sib txawv ntawm lub aperture wedge hlau tsim, yog li cov dej ntws tawm ntawm lub xeev Laminar, thiab kev sib cais qhov tseeb txog {}}. 25mm. Los ntawm kev kho qhov kev hloov nrawm nrawm thiab sib txawv ntawm cov kab sib txawv, thiab cov teeb meem uas sib txawv, thiab cov teeb meem sib txawv ntawm 35% {4%.

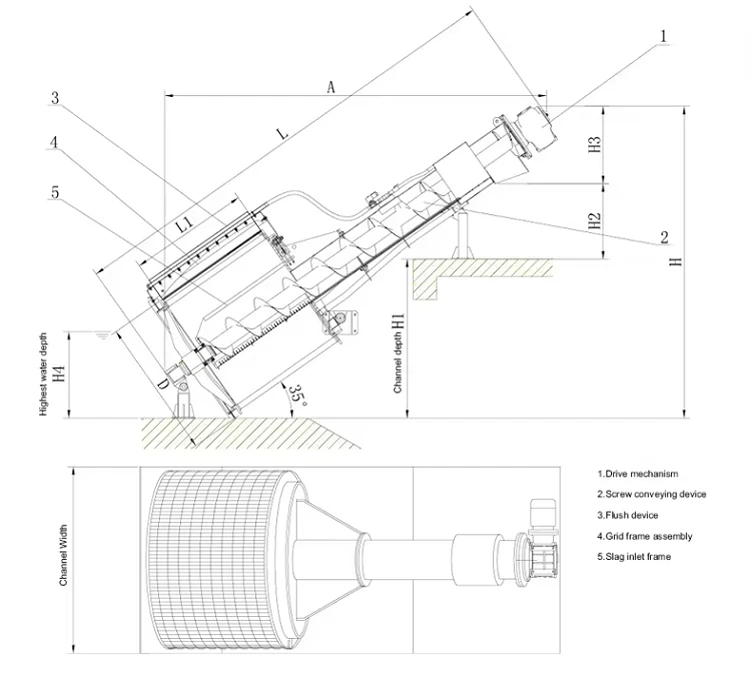

Qauv Duab Kos
Tsis
|
Qauv-ZG |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
|
Nruag Inch d (hli) |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
|
Nruas Light L1 (hli) |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
2000 |
2200 |
|
Cov dej siab tshaj plaws theem H4 (hli) |
400 |
500 |
670 |
800 |
930 |
1100 |
1200 |
1300 |
1500 |
|
Lub cev muaj zog (KW) |
0.75 |
1.5 |
2.2 |
||||||
|
Nruab kaum |
35 degree |
||||||||
|
Channel tob H1 (hli) |
H1=600 ~ 3000 |
||||||||
|
Slag o qhov siab H2 (hli) |
Kev tsim qauv raws li cov neeg yuav tsum tau ua |
||||||||
|
H3 (hli) |
Paub tseeb raws li lub tshuab reducer |
||||||||
|
Ntaus cov cuab yeej nruab siab (hli) |
H=H1+H2+H3 |
||||||||
|
Installation Ntev A (MM) |
A=H*1.43-0.48D |
||||||||
|
Ntaus ntawv tag nrho l (hli) |
L=H*1.74-0.75D |
||||||||
|
Customization yog txais |
|||||||||
Dej ntws
|
Qauv-ZG |
600 |
800 |
1000 |
1200 |
1400 |
1600 |
1800 |
||
|
Kua ceev (m / s) |
1 |
||||||||
|
Dej Flow tus nqi (m / s) |
Screen Gap (hli) |
0.5 |
80 |
135 |
240 |
310 |
450 |
585 |
745 |
|
1 |
125 |
220 |
370 |
510 |
720 |
955 |
1210 |
||
|
2 |
190 |
330 |
560 |
765 |
1100 |
1440 |
1830 |
||
|
3 |
230 |
400 |
685 |
935 |
1340 |
1760 |
2235 |
||
|
4 |
240 |
430 |
720 |
1010 |
1440 |
2050 |
2700 |
||
|
5 |
250 |
470 |
795 |
1110 |
1570 |
2200 |
2935 |
||
|
Customization yog txais |
|||||||||
|
Qauv-ZG |
2000 |
2200 |
2400 |
2600 |
||
|
Kua ceev (m / s) |
1 |
|||||
|
Dej Flow tus nqi (m / s) |
Screen Gap (hli) |
0.5 |
920 |
1130 |
1380 |
2080 |
|
1 |
1495 |
1800 |
2150 |
3280 |
||
|
2 |
2260 |
2730 |
3250 |
4530 |
||
|
3 |
2760 |
3330 |
3970 |
5450 |
||
|
4 |
3340 |
4030 |
4680 |
6230 |
||
|
5 |
3600 |
4360 |
5220 |
6750 |
||
|
Customization yog txais |
||||||

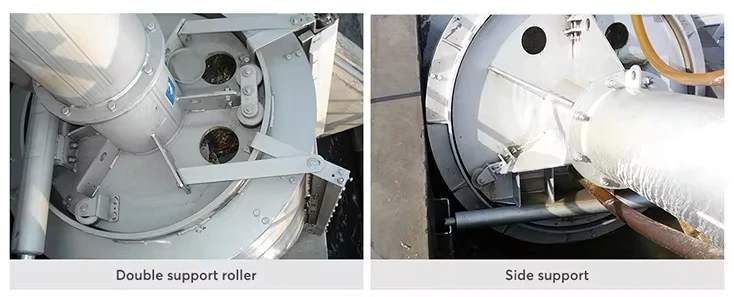

Khoom Paub meej

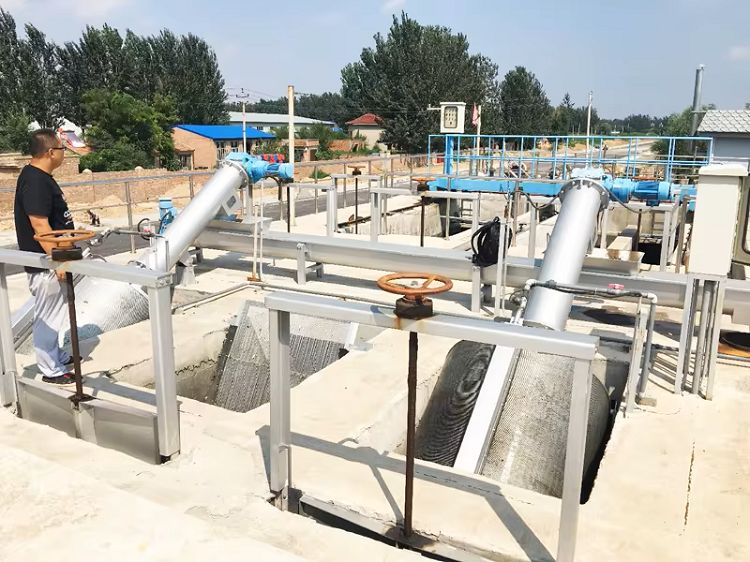

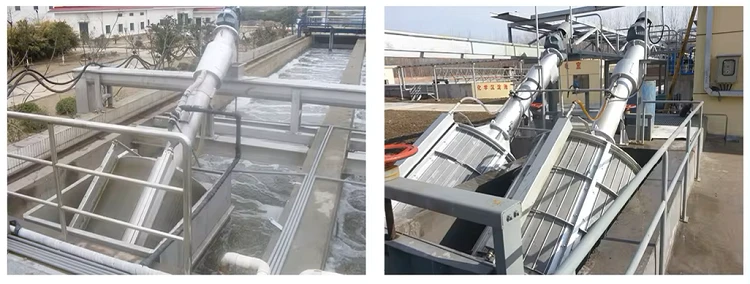

Qhov Chaw Ua Haujlwm
