Txheej txheem cej luam

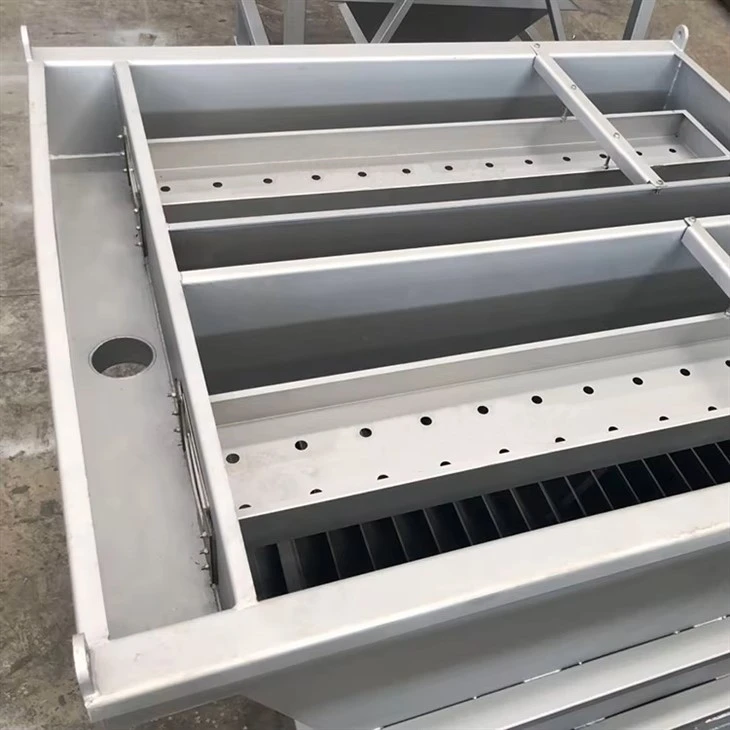

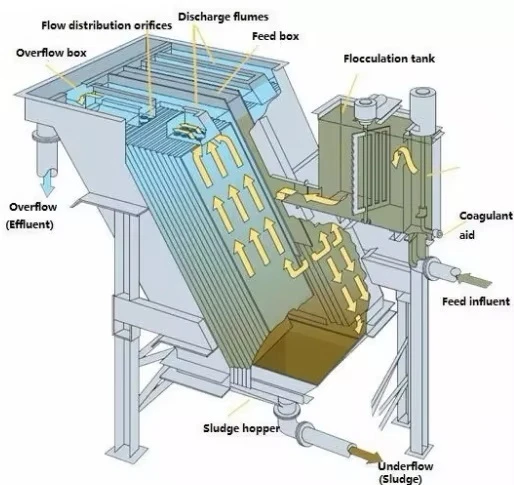

Lub lamella clarifier siv lub hauv paus ntsiab lus zoo ntawm inclined phaj clarification. Hom clarifier no siv lub zog ntawm lub ntiajteb txawj nqus ua ke nrog thaj chaw zoo tsim los ntawm 55 ~ 60 degrees lub kaum sab xis yas sib dhos kom cais cov khib nyiab los ntawm cov kua dej ua ntej. Cov kua uas kho tau pib dhau los ntawm lub tank flocculation qhov twg cov polymer yog qhia los txhawb kev loj hlob ntawm floc, ua ntej nqis mus rau hauv qab ntawm lub clarifier thiab nce mus rau hauv lub phaj pob (s) thaum tso cai rau cov khib nyiab los ntawm hauv qab sludge cones los yog cones - nyob ntawm seb qhov loj. Cov khib nyiab raug tshem tawm ib ntus los ntawm lub khob hauv qab lub khob rau kev daws teeb meem ntxiv, thiab thaum kawg tau dewatering zaum kawg hauv lub lim xovxwm.
Kev Ua Haujlwm
Daim ntawv thov
- Kev qhia meej
- Hlau tshem tawm
- Cov khoom rov qab
- Boiler khib nyiab kho
- Kev kho dej hauv av
- Txias Ntauwd Blowdown
- Whitewater (Pulp & Ntawv)
- Municipal Water Treatment
- Semiconductor txheej txheem pov tseg
- Flue Gas Desulfurization (FGD)
Qhov zoo
- Cov qauv yooj yim, tsis hnav qhov chaw
- Kev ua haujlwm ruaj khov, ua haujlwm yooj yim
- Tsis muaj tsav lossis cov khoom siv tshuab., txuag lub zog
- Qhov chaw me me, kev nqis peev tsawg
- Lub sijhawm khaws cia luv, kev ua haujlwm siab sediment, tsis muaj sludge backflow
Tsis muaj
|
Qauv |
Muaj peev xwm |
Nozzle lis(mm) |
Qhov ntev (m) |
|||||
|
(m³/h) |
Inlet |
Qhov hluav taws xob |
Sludge |
Rov qab ntxuav |
L |
W |
H |
|
|
CQ -1 |
1 |
25 |
25 |
50 |
50 |
1.6 |
0.8 |
2.0 |
|
CQ -3 |
3 |
50 |
50 |
50 |
50 |
1.6 |
1.1 |
2.0 |
|
CQ -5 |
5 |
80 |
80 |
50 |
50 |
2.55 |
1.6 |
2.9 |
|
CQ -10 |
10 |
100 |
100 |
50 |
50 |
3.35 |
1.82 |
3 |
|
CQ -20 |
20 |
100 |
100 |
50 |
50 |
3.35 |
2.02 |
3 |
|
CQ -30 |
30 |
150 |
150 |
50 |
50 |
4.2 |
2.22 |
3 |
|
CQ -40 |
40 |
150 |
150 |
50 |
50 |
4 |
2.8 |
3 |
|
CQ -50 |
50 |
200 |
200 |
50 |
50 |
4.65 |
2.82 |
3 |
|
CQ -60 |
60 |
200 |
200 |
50 |
50 |
4.7 |
3 |
3 |
|
CQ -70 |
70 |
250 |
200 |
50 |
50 |
6.4 |
2.6 |
3 |
|
CQ -80 |
80 |
250 |
200 |
50 |
50 |
6.8 |
2.82 |
3 |
|
CQ -100 |
100 |
250 |
250 |
50 |
50 |
7.05 |
3.02 |
3 |

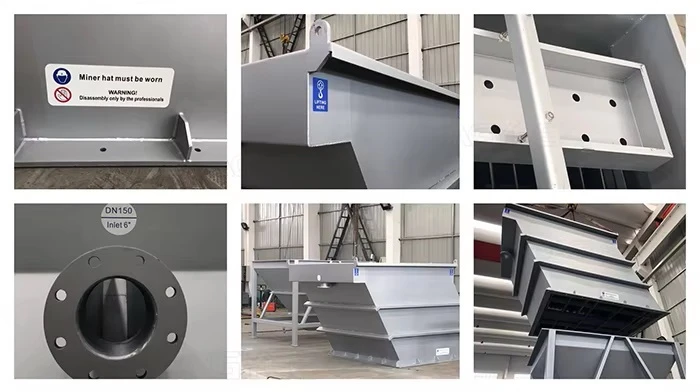

Khoom Paub meej
